Advantages and applications of PTFE lined rubber expansion joints

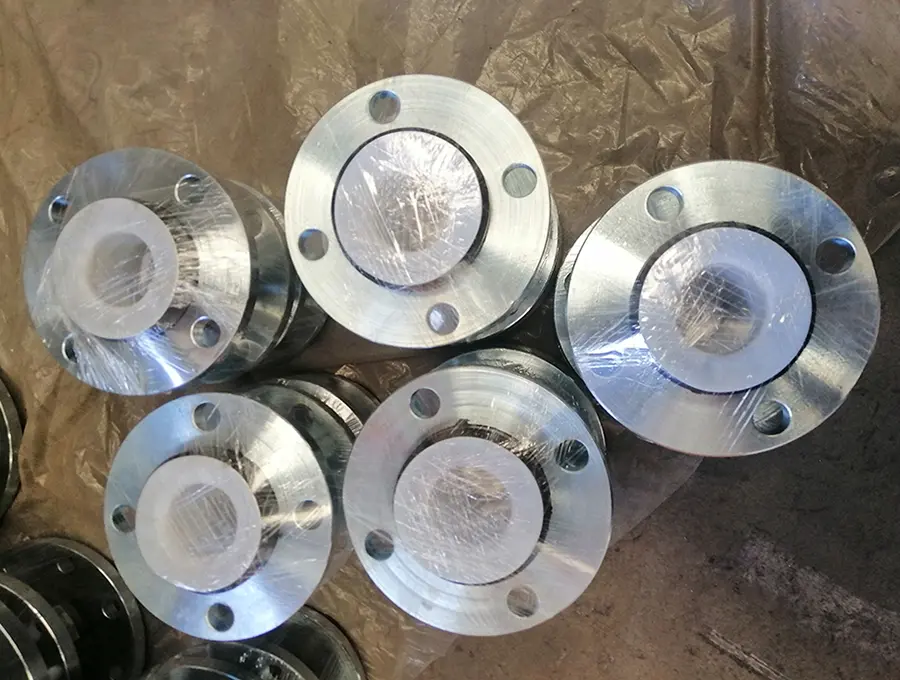

Shandong Hesper make various of expansion joints, like metal expansion joint, fabric expansion joint and rubber expansion joint, can satisfied requirements in many industries. PTFE lined rubber expansion joint (PTFE lined rubber joint) is one kind of our rubber expansion joint, it’s a high performance pipe connection component, its structure combines the flexibility of rubber and the corrosion resistance of polytetrafluoroethylene (PTFE), has many advantages:

1.Enhanced corrosion resistance

The PTFE lining directly covers the inner wall of the rubber sphere to form a seamless protective layer, effectively isolating the corrosive medium from contacting the rubber and solving the aging problem of ordinary rubber joints in strong acid and alkali environments.

2.Combination of flexibility and chemical stability

The rubber sphere provides axial, lateral and angular displacement compensation capabilities (axial compression of 15%-20%, radial deflection angle exceeding 30°). Meanwhile, the PTFE lined layer maintains chemical stability without sacrificing the elastic properties of rubber, ensuring the comprehensive performance of the joint under complex working conditions.

3.Anti-scouring and anti-falling design

The PTFE lining is combined with the rubber matrix through a special process to form a molecular-level interface, preventing the lining from falling off due to media erosion or pipeline stretching.

Typical applications of PTFE lined rubber expansion joint:

1.Chemical industry

For piping systems that transport highly corrosive media such as sulfuric acid, hydrochloric acid, and sodium hydroxide, the PTFE lining can resist chemical erosion, and the rubber spheres compensate for thermal expansion and contraction of the pipes.

2.Pharmaceutical and food industry

In clean pipe connections, PTFE's non-toxic and non-leakage properties meet hygiene standards, and the rubber part absorbs equipment vibration and reduces noise.

3.Thermal power plants and high-temperature steam pipelines

The composite structure of EPDM rubber and PTFE can withstand high temperature steam (up to 260°C) and pressure fluctuations, preventing pipeline damage due to thermal stress.

4.Sewage treatment and environmental protection engineering

The properties of acid, alkali and chloride ion corrosion resistance are suitable for sewage pipelines, reducing leakage risks and lowering maintenance costs.
Above just typical applications of PTFE lined rubber expansion joints, if you want use better performance and loner lifetime expansion joint in common environment also can choose it. We also have PTFE expansion joints and PTFE lined metal expansion joints for your choices. For more information, welcome to contact us.
