Chemical Hose is a kind of rubber hose which designed to suction and delivery 98% of all chemicals, solvents and corrosive liquids,excellent in handling a wide range of chemicals, petroleum products, oils and battery processing industry. It can be made as a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. Chemical suction discharge rubber hose construction incorporates a Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM that features a temperature rating to 100°C, will not leach into and contaminate the product being conveyed. The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.
Product Features
Temperature range: -40℃ (-72 ℉ ) to + 100℃
General construction(all can be customized according to customers’ requests):
Tube: White,smooth,UHMW synthetic rubber,EPDM
Reinforcement: High tensile textile cord with helix steel wire.
Cover: Blue or colorful,wrapped finish, rubber compound,weather and abrasion resistant..
Application Area
Flexible tubes are widely used for the transport of chemical solvents, acids, alkali and alcohols.Particularly suitable for industrial drainage, seawater transport and water purification systems.
General data sheet for chemical Hose
|
ID |
OD |
WP |
BP |
Weight |
Length |
|||
|
in |
mm |
mm |
bar |
psi |
bar |
psi |
kg/m |
m |
|
3/4 |
19 |
30.4 |
10 |
150 |
40 |
600 |
0.67 |
60 |
|
1 |
25 |
36.4 |
10 |
150 |
40 |
600 |
0.84 |
60 |
|
1-1/4 |
32 |
44.8 |
10 |
150 |
40 |
600 |
1.2 |
60 |
|
1-1/2 |
38 |
51.4 |
10 |
150 |
40 |
600 |
1.5 |
60 |
|
2 |
51 |
64.4 |
10 |
150 |
40 |
600 |
1.93 |
60 |
|
2-1/2 |
64 |
78.4 |
10 |
150 |
40 |
600 |
2.55 |
60 |
|
3 |
76 |
90.8 |
10 |
150 |
40 |
600 |
3.08 |
60 |
|
4 |
102 |
119.6 |
10 |
150 |
40 |
600 |
4.97 |
60 |
|
6 |
152 |
171.6 |
10 |
150 |
40 |
600 |
8.17 |
30 |

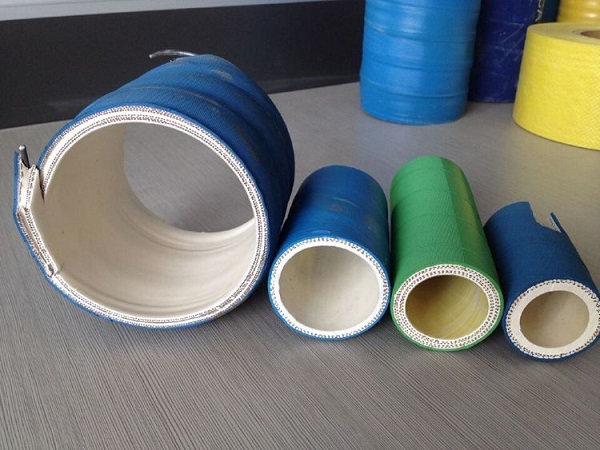

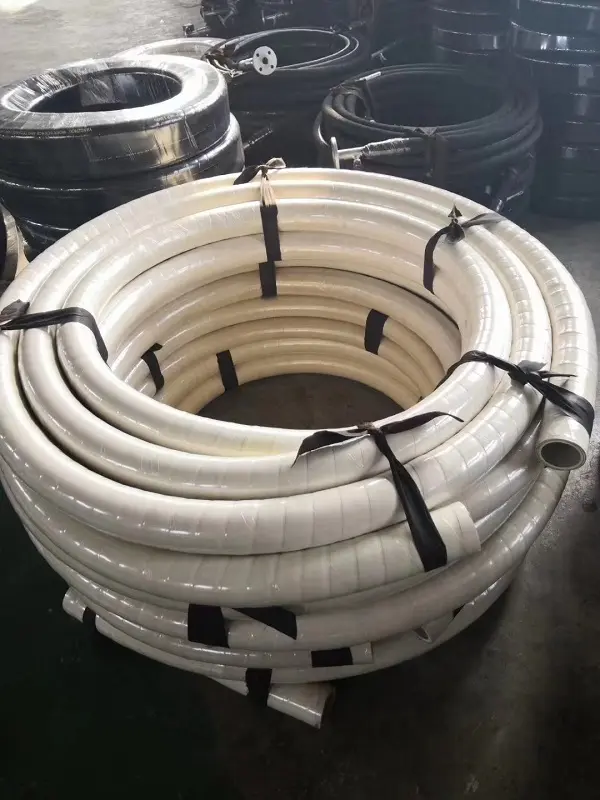

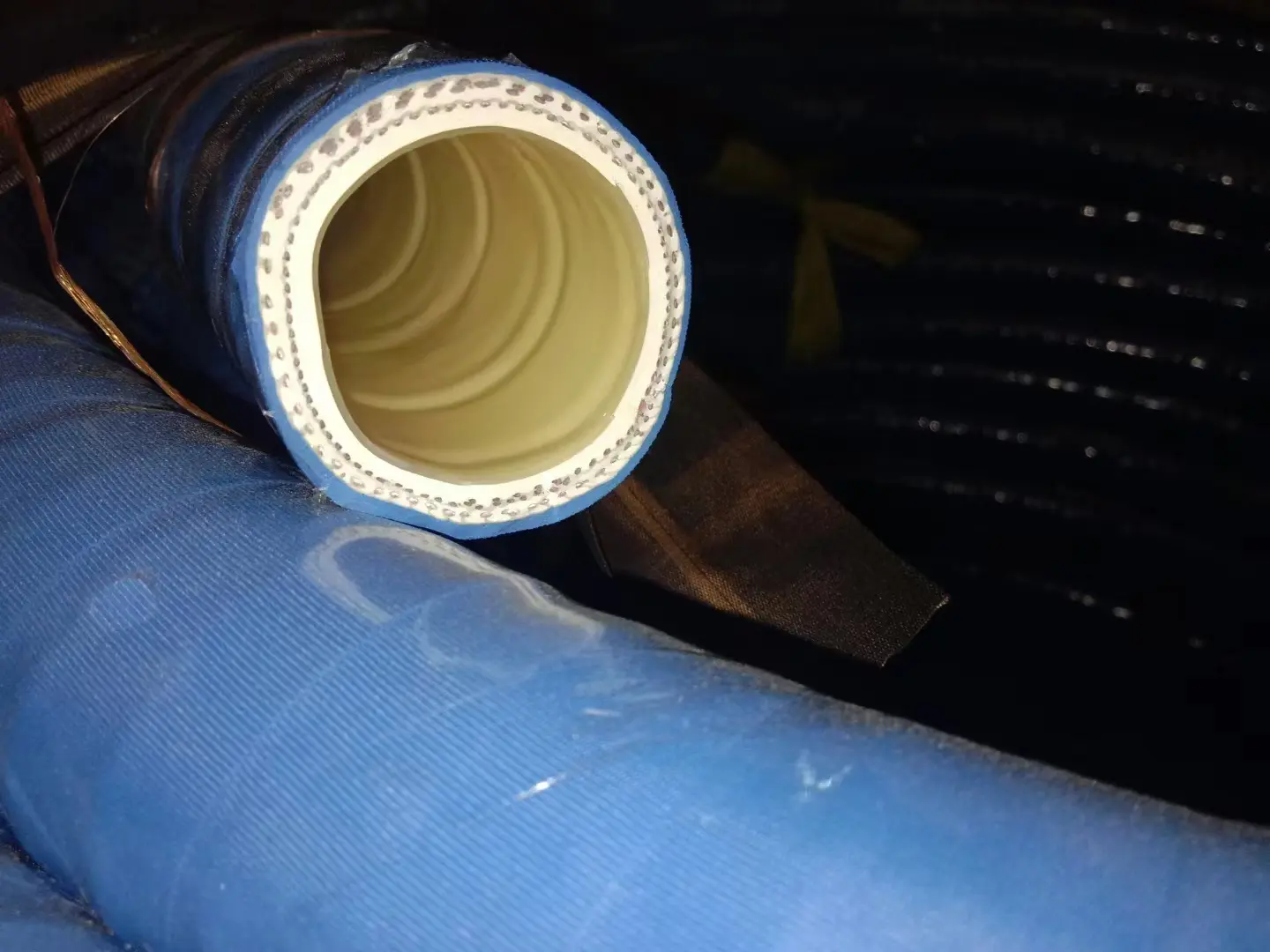

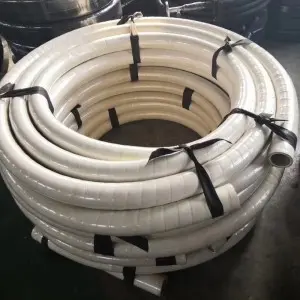

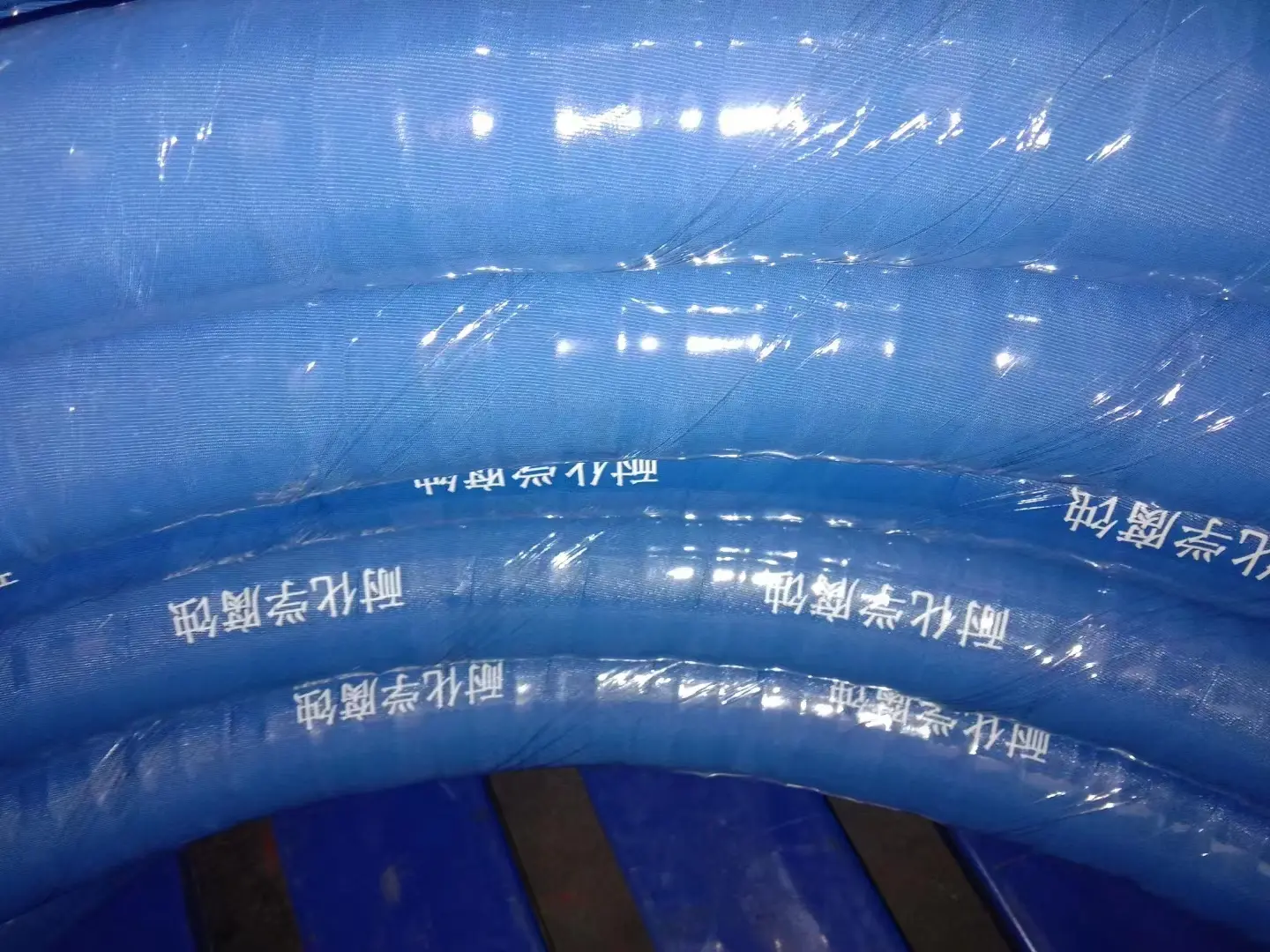

Product Display
